Elektor Mini-Wheelie Selbstbalancierender Roboter

  • HerstellerElektor Labs

Beschreibung

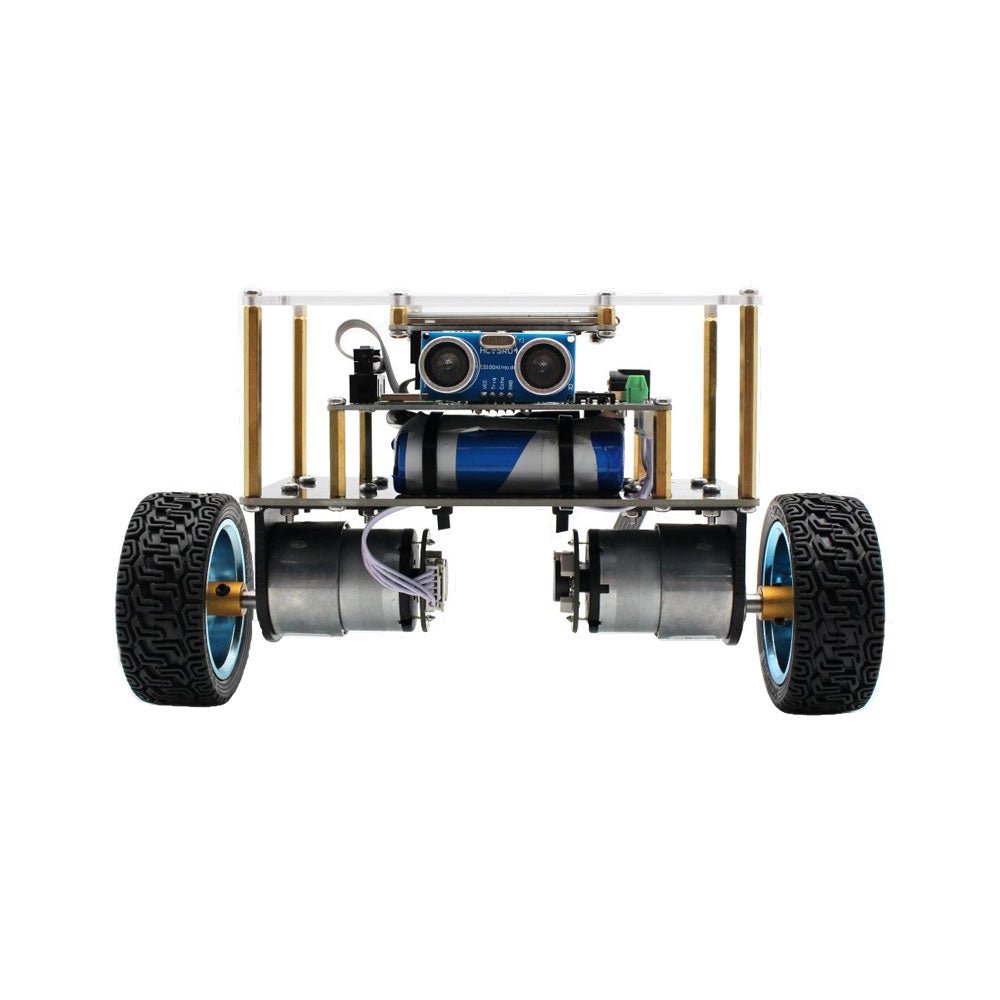

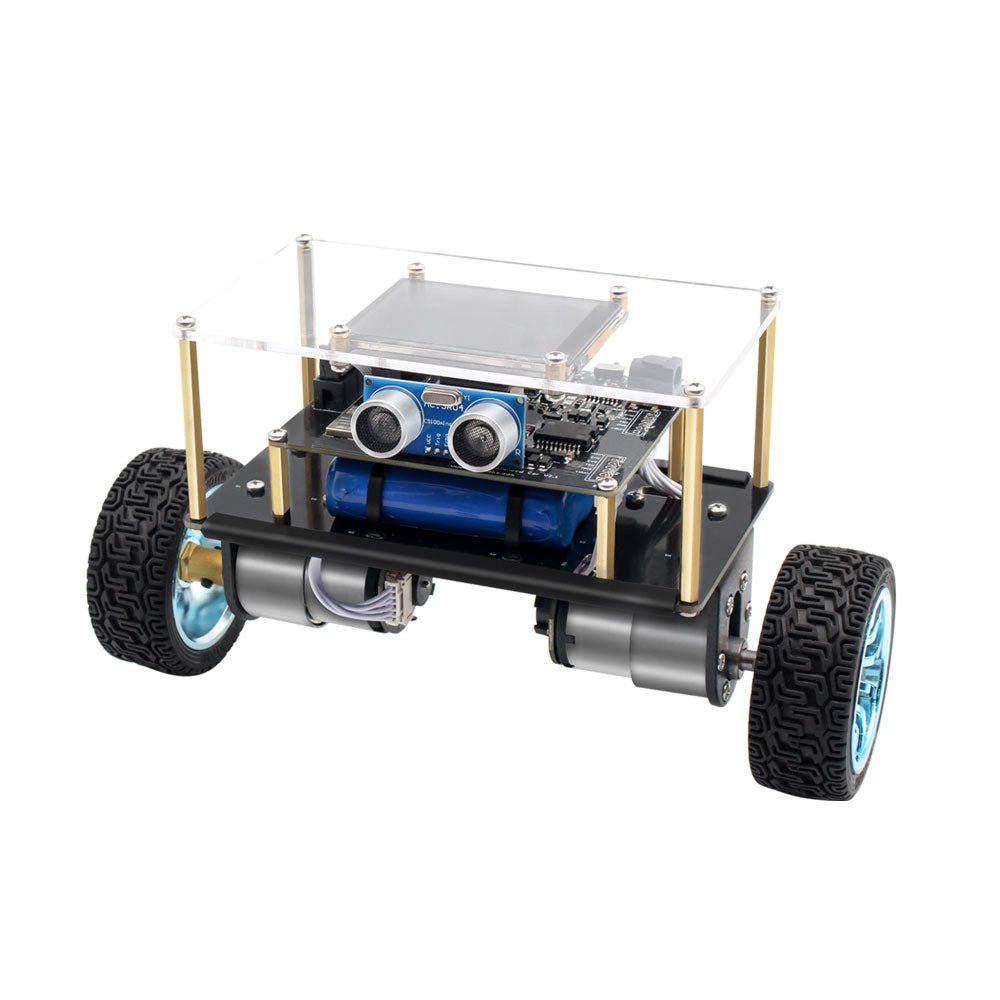

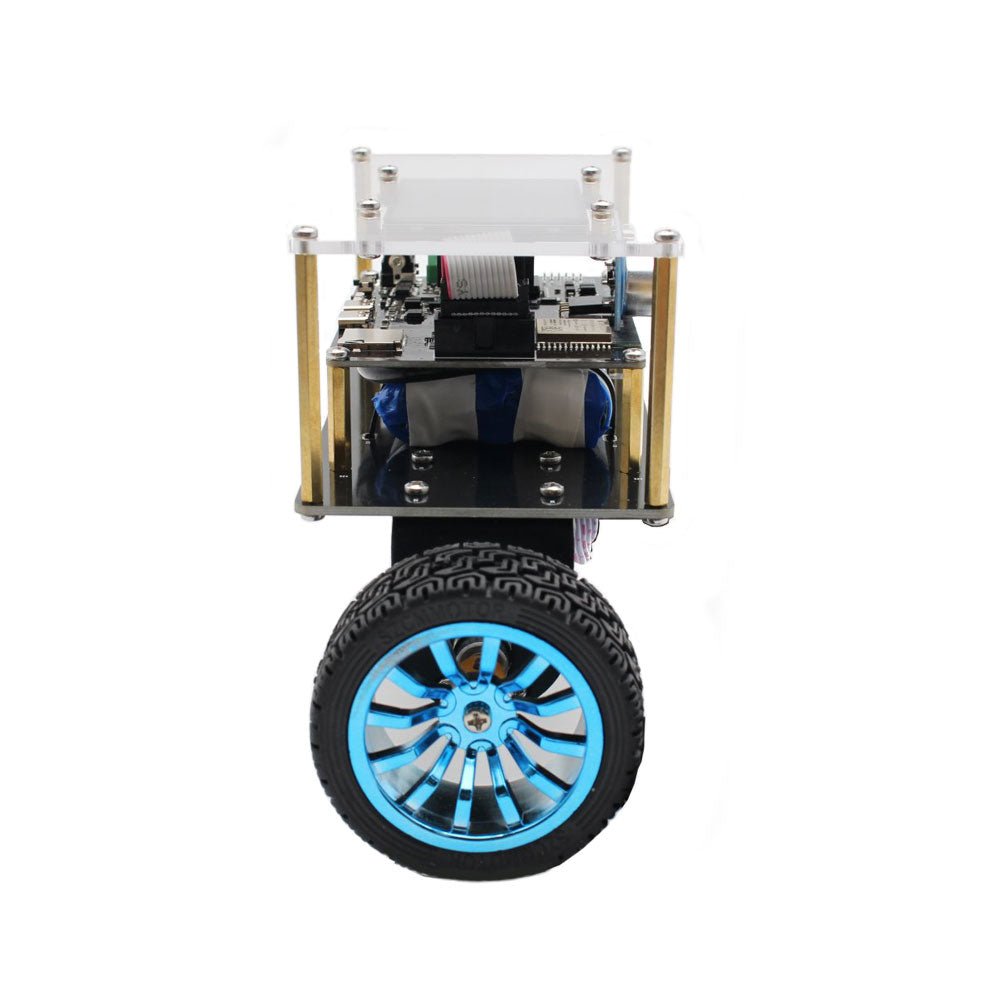

Der Elektor Mini-Wheelie ist eine experimentelle autonome selbstbalancierende Roboterplattform. Der selbstbalancierende Roboter basiert auf einem ESP32-S3-Mikrocontroller und ist mithilfe der Arduino-Umgebung und Open-Source-Bibliotheken vollständig programmierbar. Dank seiner drahtlosen Fähigkeiten kann er über WLAN, Bluetooth oder ESP-NOW ferngesteuert werden oder mit einem Benutzer oder sogar einem anderen Roboter kommunizieren.

Zur Erkennung von Hindernissen steht ein Ultraschallwandler zur Verfügung. Über das Farbdisplay lassen sich niedliche Gesichtsausdrücke oder für den bodenständigeren Nutzer auch kryptische Debug-Meldungen darstellen.

Der Roboter wird als Komplettbausatz mit Teilen geliefert, die Sie selbst zusammenbauen müssen. Alles ist dabei, sogar ein Schraubenzieher.

Hinweis: Der Mini-Wheelie ist eine pädagogische Entwicklungsplattform, die zum Lernen, Experimentieren und zur Entwicklung von Robotern gedacht ist. Er ist nicht als Kinderspielzeug klassifiziert, und seine Funktionen, Dokumentation und Zielgruppe spiegeln diesen Zweck wider. Das Produkt richtet sich an Studenten, Dozenten und Entwickler, die Robotik, Programmierung und Hardware-Integration in einem pädagogischen Umfeld erforschen möchten.

Technische Daten

  • ESP32-S3 Mikrocontroller mit WLAN und Bluetooth
  • MPU6050 6-achsige Inertial Measurement Unit (IMU)
  • Zwei unabhängig gesteuerte 12 V-Elektromotoren mit Drehzahlmesser
  • Ultraschallwandler

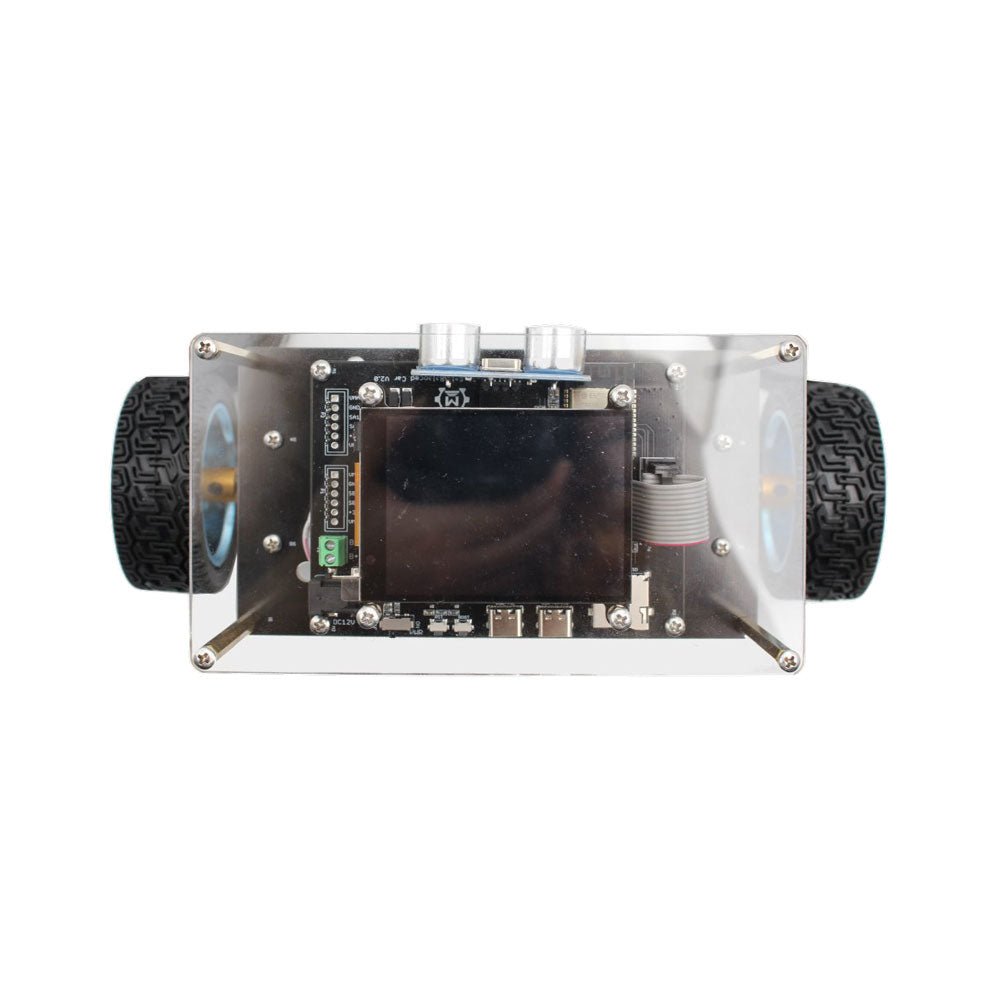

  • 2,9" TFT-Farbdisplay (320 x 240)
  • MicroSD-Kartensteckplatz
  • Batterieleistungsmonitor
  • 3S wiederaufladbarer Li-Po-Akku (11,1 V/2200 mAh)
  • Batterieladegerät im Lieferumfang enthalten
  • Arduino-basierte Open-Source-Software
  • Abmessungen (B x L x H): 23 x 8 x 13 cm

Lieferumfang

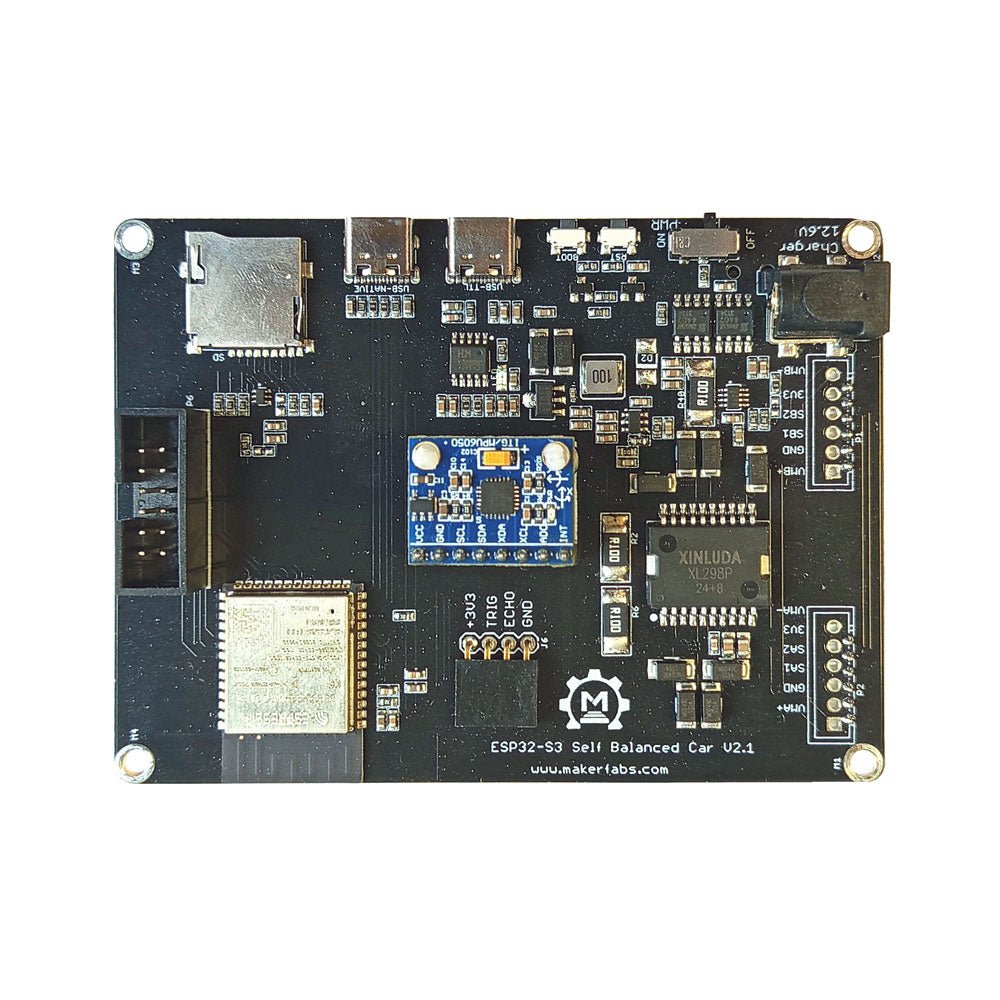

  • 1x ESP32-S3 Mainboard + MPU6050 Modul
  • 1x LCD-Board (2,9 Zoll)
  • 1x Ultraschallsensor
  • 1x Akku (2200 mAh)
  • 1x Batterieladegerät
  • 1x Motorreifen-Set
  • 1x Gehäuseplatine
  • 1x Acrylplatte
  • 1x Schraubendreher
  • 1x Schutzstreifen
  • 1x Flexkabel B (8 cm)
  • 1x Flexkabel A (12 cm)
  • 1x Flexkabel C
  • 4x Kupfersäule A (25 mm)
  • 4x Kupfersäule B (55 mm)
  • 4x Kupfersäule C (5 mm)
  • 2x Kunststoff-Nylonsäule
  • 8x Schrauben A (10 mm)
  • 24x Schrauben B (M3x5)
  • 8x Nüsse
  • 24x Metallscheiben
  • 2x Kabelbinder
  • 1x MicroSD-Karte (32 GB)

Downloads



Produktformular

Der Elektor Mini-Wheelie ist eine experimentelle autonome selbstbalancierende Roboterplattform. Der selbstbalancierende Roboter basiert auf einem ESP32-S3-Mikrocontroller und ist mithilfe der... Weiterlesen

€ 99,95€ 84,95 inkl. MwSt.
Mitglieder identisch

      Details

      SKU: 21087
      EAN: 7442105134113

      Beschreibung

      Der Elektor Mini-Wheelie ist eine experimentelle autonome selbstbalancierende Roboterplattform. Der selbstbalancierende Roboter basiert auf einem ESP32-S3-Mikrocontroller und ist mithilfe der Arduino-Umgebung und Open-Source-Bibliotheken vollständig programmierbar. Dank seiner drahtlosen Fähigkeiten kann er über WLAN, Bluetooth oder ESP-NOW ferngesteuert werden oder mit einem Benutzer oder sogar einem anderen Roboter kommunizieren.

      Zur Erkennung von Hindernissen steht ein Ultraschallwandler zur Verfügung. Über das Farbdisplay lassen sich niedliche Gesichtsausdrücke oder für den bodenständigeren Nutzer auch kryptische Debug-Meldungen darstellen.

      Der Roboter wird als Komplettbausatz mit Teilen geliefert, die Sie selbst zusammenbauen müssen. Alles ist dabei, sogar ein Schraubenzieher.

      Hinweis: Der Mini-Wheelie ist eine pädagogische Entwicklungsplattform, die zum Lernen, Experimentieren und zur Entwicklung von Robotern gedacht ist. Er ist nicht als Kinderspielzeug klassifiziert, und seine Funktionen, Dokumentation und Zielgruppe spiegeln diesen Zweck wider. Das Produkt richtet sich an Studenten, Dozenten und Entwickler, die Robotik, Programmierung und Hardware-Integration in einem pädagogischen Umfeld erforschen möchten.

      Technische Daten

      • ESP32-S3 Mikrocontroller mit WLAN und Bluetooth
      • MPU6050 6-achsige Inertial Measurement Unit (IMU)
      • Zwei unabhängig gesteuerte 12 V-Elektromotoren mit Drehzahlmesser
      • Ultraschallwandler
      • 2,9" TFT-Farbdisplay (320 x 240)
      • MicroSD-Kartensteckplatz
      • Batterieleistungsmonitor
      • 3S wiederaufladbarer Li-Po-Akku (11,1 V/2200 mAh)
      • Batterieladegerät im Lieferumfang enthalten
      • Arduino-basierte Open-Source-Software
      • Abmessungen (B x L x H): 23 x 8 x 13 cm

      Lieferumfang

      • 1x ESP32-S3 Mainboard + MPU6050 Modul
      • 1x LCD-Board (2,9 Zoll)
      • 1x Ultraschallsensor
      • 1x Akku (2200 mAh)
      • 1x Batterieladegerät
      • 1x Motorreifen-Set
      • 1x Gehäuseplatine
      • 1x Acrylplatte
      • 1x Schraubendreher
      • 1x Schutzstreifen
      • 1x Flexkabel B (8 cm)
      • 1x Flexkabel A (12 cm)
      • 1x Flexkabel C
      • 4x Kupfersäule A (25 mm)
      • 4x Kupfersäule B (55 mm)
      • 4x Kupfersäule C (5 mm)
      • 2x Kunststoff-Nylonsäule
      • 8x Schrauben A (10 mm)
      • 24x Schrauben B (M3x5)
      • 8x Nüsse
      • 24x Metallscheiben
      • 2x Kabelbinder
      • 1x MicroSD-Karte (32 GB)
